韓國SHIN YOUNG氣動離合器,SHIN YOUNG氣動制動器.

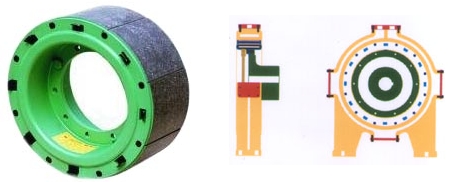

SHIN YOUNG AIR CLUTCH AIR BRAKE E-TYPE gurantees the constant working condition by the compulsory circulation method (water or air cooling) which reduces the operating heat from the inner part of the clutch(brake) itself. - Good heat radiation with the compulsory water or air cooling structure - Fuel effective, Easy assembling and installation - Easy replacement of lining. ? ADOPTIONS - coiler, uncoiler : control for the constant tension - textile processing machine. line conveyor of the automation machine ITEM MODEL PORDUCED TOROUE USED AIR PRESSURE(㎏/?) WEIGHT (㎏) GD2 (㎏,㎡) RUBBING SPACE (IN2) LINING QUANTITY MAXIMUM AIR CAPACITY ROTARY SEAL 1 5 8 SY-304E140 25 125 200 12 0.86 176 8 0.65 PT 3/4 SY-355E140 35 175 280 16 1.41 204 10 0.78 PT 3/4 SY-406E140 47 235 376 20 2.38 231 12 0.82 PT 3/4 SY-482E140 69 345 552 26 4.41 279 12 1.01 PT 3/8 SY-546E140 89 445 712 29 7.12 315 14 1.15 PT 3/8 SY-609E140 114 570 912 32 10.01 349 16 1.31 PT 3/8 SY-685E140 147 735 1176 41 15.2 392 18 1.54 PT 3/8 SY-762E178 233 1165 1864 64 32.1 558 14 3.21 PT 1/2 SY-863E178 301 1505 2408 86 53.8 631 16 3.57 PT 1/2 SY-1016E208 494 2470 3952 122 99.7 875 18 5.25 PT 3/4
